Podrobný popis
| Výrobce |
Parsun |
| Číslo zboží |
11100029 |

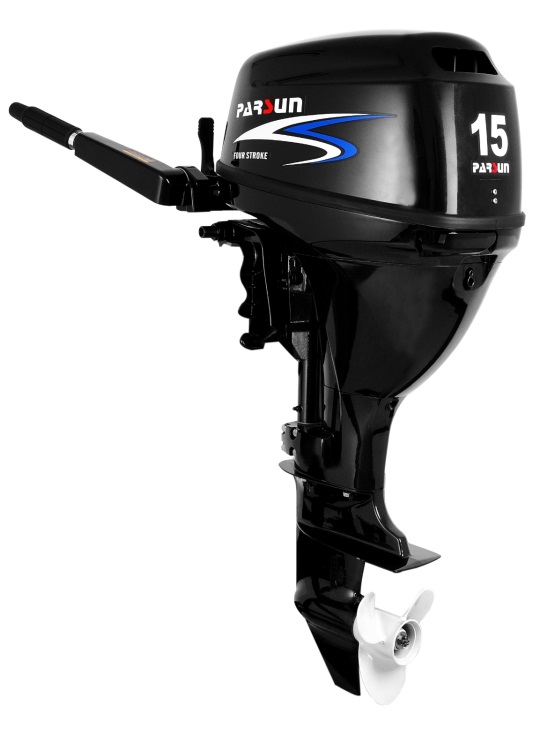

PARSUN FOUR STROKE 15HP OUTBOARD MOTORS FEATURES:
- Innovative CDI ignition system for easy starting
- Twist grip throttle for easy maneuverability and safety
- Safety lanyard/emergency shutoff
- Thermostat controlled water cooling system for consistent engine temperature
- Heavy duty aluminum propeller
- Easy to monitor oil level gauge indicator
- Vibration reduction system
- Start in gear protection
- Shallow water drive
- Ultra low emission, CE and EPA approved
- 24L separately fuel tank and hose
OPTIONS
1. Electric Start
2. Lighting coil and 12V DC output allow you to run a spotlight.
3. Remote Control with electric start
4. Power trim and tilt system
5. Available various shaft lengths, 15, 20 and 25 inches, for multiple applications
6. 8”, 9”, 10”, 11” different pitch propeller for different boat’s request
The PARSUN four-stroke outboard engines boast muscular performance despite being light in weight for their classes.
PARSUN 15HP outboard motors feature greater flexibility and durability, are the perfect choice for inflatable, small fishing boats and pontoon boats with great operating convenience.
| Engine type |
4-stroke,2 cylinders, OHC |
| Displacement |
323 cc |
| Bore x Stroke mm(in.) |
59.0×59.0(2.32×2.32) |
| Max. output kw(hp) |
11(15) |
| Full throttle RPM range |
4500~5500 |
| Ignition system |
CDI |
| Starting system |
Manual |
| Steering system |
Tiller control |
| Gear shift |
Forward-Neutral-Reverse |
| Gear ratio |
2.08 (27/13) |
| Trim and tilt system |
Manual,4 positions/Shallow drive |
| Max fuel consumption |
5.3 L/h |
| Fuel tank capacity |
24L |
| Sump oil capacity |
1.0L |
| Gear oil capacity |
250cc |
| Dry weight |
49kg |
| Overall width mm(in.) |
427(16.8) |
| Recommended transom height |
381mm(15 in.) / 508mm(20 in.) / 635mm(25 in.) |
| Alternator output |
12V DC |
| Propeller options* |
3-9.25 x 8" or 3-9.25 x 10" or 9.25 x 11"(standard) |
*Propeller choice will vary by boat size and application.
*12V DC is an option.
